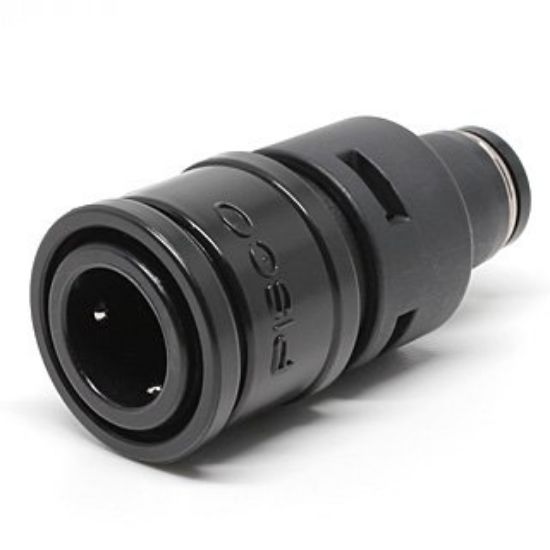

Pisco CPS20-8B Coupling
Size
Tube outer diameter (φD): 8mm
Compatible plug format: CPP20-□
Features
● Small, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
● The air stops when you unplug.
Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)
Material
● Resin body: PBT, POM
● Open ring: POM
● Seal rubber: NBR
Mass
24g
