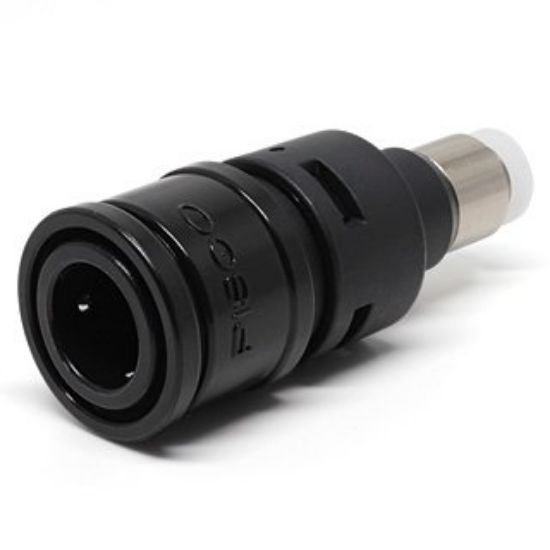

Pisco CPS20-1/4B Coupling

Pisco CPS20-1/4B Coupling
Manufacturer: Pisco
SKU: PS-CPS20-1/4B
Manufacturer part number: CPS20-1/4B

Pisco CPS20-1/4B Coupling

Size
Tube outer diameter (φD): 1/4
Compatible plug format: CPP20-□

Features
● Small, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
● The air stops when you unplug.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT, POM
● Open ring: POM
● Seal rubber: NBR

Mass

30g
