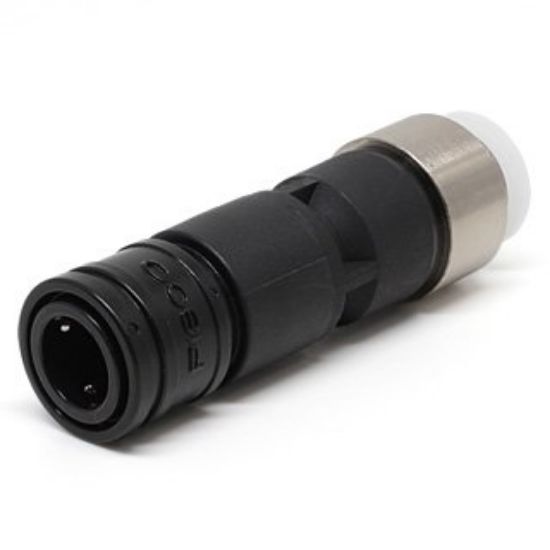

Pisco CPS15-3/8B Coupling

Pisco CPS15-3/8B Coupling
Manufacturer: Pisco
SKU: PS-CPS15-3/8B
Manufacturer part number: CPS15-3/8B

Pisco CPS15-3/8B Coupling

Size
Tube outer diameter (φD): 3/8
Compatible plug type: CPP15-□

Features
● Small, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
● The air stops when you unplug.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (non-freezing)
※ 15 series sockets alone, Cannot be used for vacuum retention purposes.

Material
● Resin body: PBT, POM
● Open ring: POM
● Seal rubber: NBR

Mass

40g
