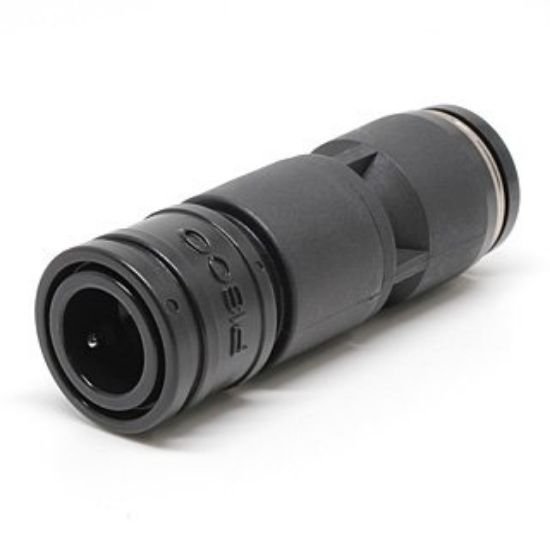

Pisco CPS15-10B Coupling
Size
Tube outer diameter (φD): 10 mm
Compatible plug format: CPP15-□
Features
● Compact, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
● The air stops when you unplug.
Specifications
● Fluid used: Air
● Maximum operating pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (non-freezing)
※ 15 series sockets alone, Cannot be used for vacuum retention purposes.
Material
● Resin body: PBT, POM
● Open ring: POM
● Seal rubber: NBR
Mass
17g
