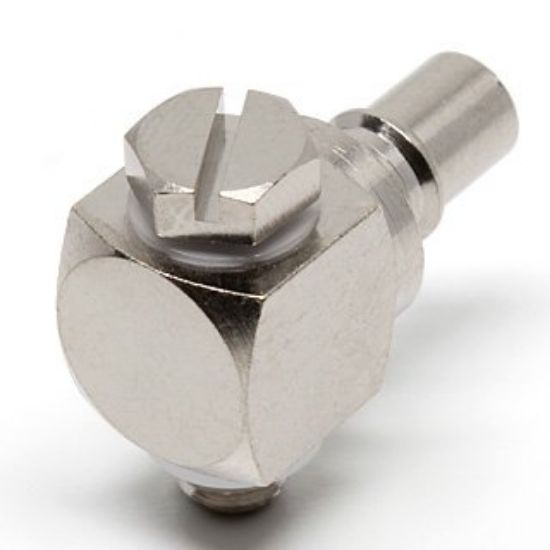

Pisco CPPE7H-M5 Coupling

Pisco CPPE7H-M5 Coupling

Size
Screw size (M): M5×0.8
Compatible socket format: CPSE7□

Features
● Small, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
- Space-saving piping is possible with a compact design.

Specifications
● Fluid used: Air, water (conditional)
● Maximum working pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)
※ When the used fluid is water, Be sure to observe the following conditions:
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Metal body: brass + electroless nickel plating

Mass

11g
