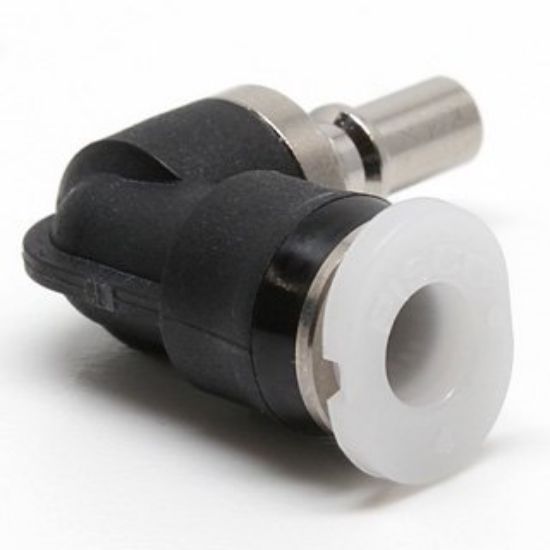

Pisco CPPE3L-5/32 Coupling

Pisco CPPE3L-5/32 Coupling

Size
Tube outer diameter (φD): 5/32
Compatible socket format: CPSE3 □

Features
● Small, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
- Space-saving piping is possible with a compact design.

Specifications
● Fluid used: air, water (conditional)
● Maximum working pressure: 0.9 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
* When the fluid used is water, be sure to observe the following conditions.
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

3g
