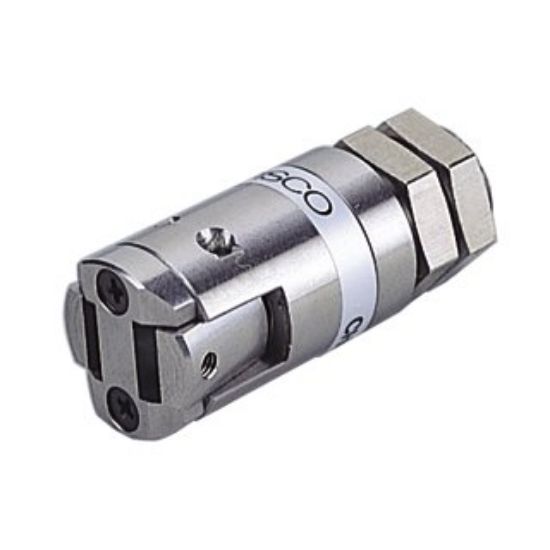

Pisco CHM08ABK Miniature Grippers

Pisco CHM08ABK Miniature Grippers

Size
Cylinder diameter: φ8mm
Connection diameter: M5×0.8

Chuck tsume shape
R matching single screw mounting method

Features
● Lightweight, ultra-compact stainless steel closing chuck.
- By work stopper, stable chucking is possible.
- K type tsume, prepare raw tsume blank. : Because it is R alignment, there is no core gap and can be installed with one screw.

Specifications
● Moment (when 0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.08 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary

Material
● Body: stainless steel
● Seal rubber: NBR

Mass

22g
