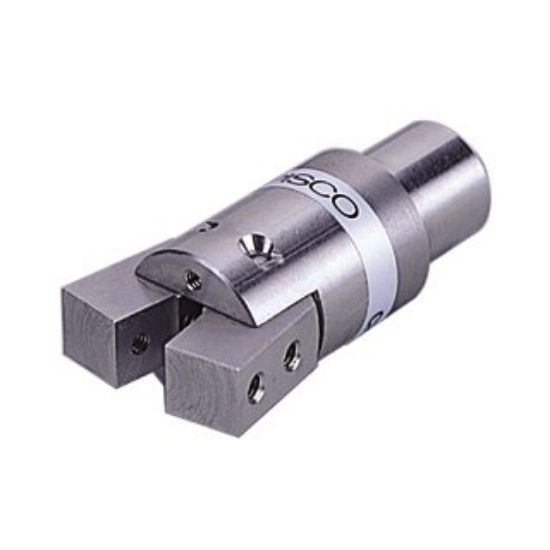

Pisco CHM08AAS Miniature Grippers

Pisco CHM08AAS Miniature Grippers

Size
Cylinder diameter: φ8mm
Connection diameter: M5×0.8

Chuck tsume shape
2 screws mounting system

Features
- Lightweight, ultra-small stainless steel closing chuck.
- By work stopper, stable chucking is possible.

Specifications
● Moment (when 0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.08 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary


Material
● Body: stainless steel
● Seal rubber: NBR

Mass

22g
