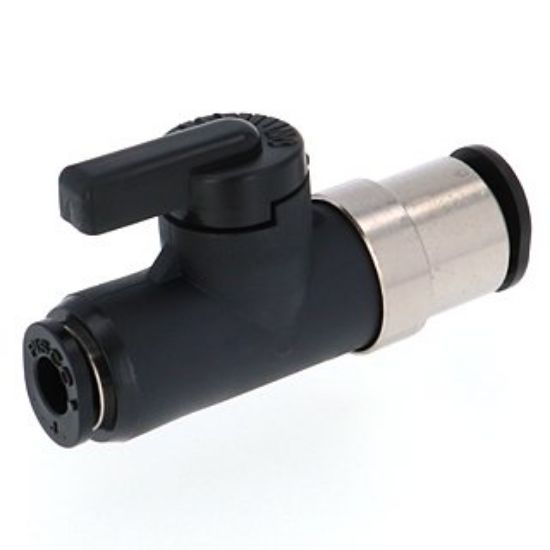

Pisco BVG6-4 Ball Valve

Pisco BVG6-4 Ball Valve

Size
Tube outer diameter (φD1): 6 mm
Tube outer diameter (φD2): 4mm

Features
● Open and close the pneumatic input to the equipment.
● Orifice diameter is large and flow rate loss is small. In addition, the lever has a scale, allowing for easy flow rate adjustment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.7 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

13g
