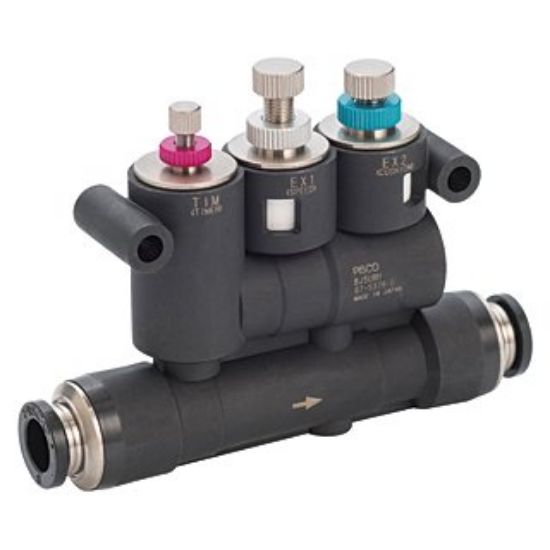

Pisco BJSU8H Shock Absorber Flow Control

Pisco BJSU8H Shock Absorber Flow Control
Manufacturer: Pisco
SKU: PS-BJSU8H
Manufacturer part number: BJSU8H

Pisco BJSU8H Shock Absorber Flow Control

Control direction
Meter out control

Size
Tube outer diameter (φD): 8 mm

Applicable cylinder tube inner diameter
Max.φ50mm

Features
●Industry's First! The same control as a cylinder with shock absorber is possible. (Patent No. 5578502)
● Shock absorber unnecessary: Two-stage adjustment of exhaust flow rate is realized. The second stage can be used for cushioning for the same control as the shock absorber.
-Speed adjustment (EX1), strength of cushion (EX2), cushion timing (TIM) can be adjusted respectively.
- Achieves more than three times the durability of general shock absorbers. It is possible to reduce the number of maintenance and costs.
● The large flow rate type secures the flow rate on one size with the same tube size as the conventional product.

Specifications
●Fluid used: Air
●Operating pressure range: 0.2 to 1.0 MPa
●Operating temperature range: 0 to 60°C (without freezing)

Material
- Resin body: PBT
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

89g
