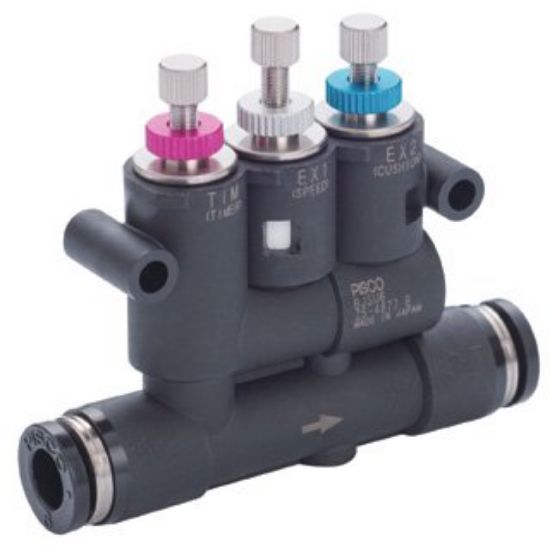

Pisco BJSU6 Shock Absorber Flow Control

Pisco BJSU6 Shock Absorber Flow Control
Manufacturer: Pisco
SKU: PS-BJSU6
Manufacturer part number: BJSU6

Pisco BJSU6 Shock Absorber Flow Control

Control direction
Meter Out Control

Size
Tube Outer Diameter (φD): 6 mm

Applicable Cylinder Tube Inner Diameter
Max.φ25 mm

Features
- The industry's first! The same control as a cylinder with shock absorber is possible. (Patent No. 5578502)
● Shock absorber unnecessary: Two-stage adjustment of exhaust flow rate is realized. The second stage can be used for cushioning for the same control as the shock absorber.
-Speed adjustment (EX1), strength of cushion (EX2), cushion timing (TIM) can be adjusted respectively.
- Achieves more than three times the durability of general shock absorbers. It is possible to reduce the number of maintenance and costs.

Specifications
●Fluid used: Air
●Operating pressure range: 0.2 to 1.0 MPa
●Operating temperature range: 0 to 60°C (without freezing)

Material
- Resin body: PBT
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

33g
