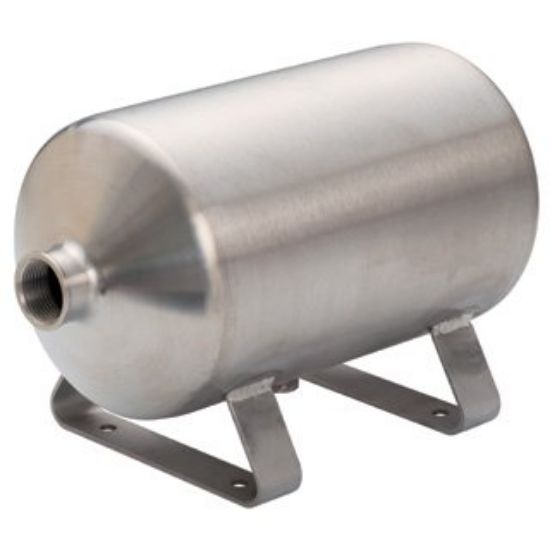

Pisco ATS-10 Air Tank

Pisco ATS-10 Air Tank

Size
Tank capacity: 10L
connection diameter (G): G1

Features
● Reduced pressure fluctuation and pulsation of compressed air and vacuum air.
- Tank material, made of stainless steel.
● RoHS directive compliant.

Specifications
● Fluid used: Compressed air (vacuum) or nitrogen
●Operating pressure range: -0.101 to 0.99 MPa
●Ambient temperature range: -10 to 100 °C
●Fluid temperature range: -10 to 100 °C
- Special note: Type 2 pressure vessel non-applicable

Material
● SUS304 equivalent

Mass

6.46kg
