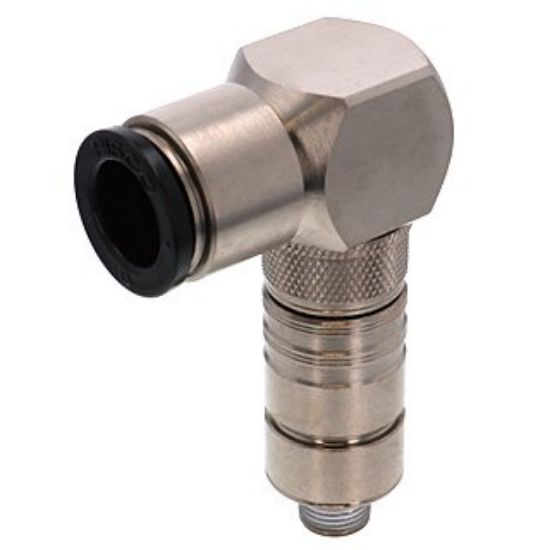

Pisco ASL10-1201 Die Temperature Control

Pisco ASL10-1201 Die Temperature Control
Manufacturer: Pisco
SKU: PS-ASL10-1201
Manufacturer part number: ASL10-1201

Pisco ASL10-1201 Die Temperature Control

Size
Tube outer diameter (φD): 12 mm
screw size (R): R1/8

Features
● One-touch fitting for mold cooling. When the plug part is removed, protrusions do not remain in the mold.
- Brass is used for metal parts, HNBR is used as a sealing material.
- Joint part and screw part are separated. : According to the screw size, the mold can be processed in advance, the screw part (socket) is embedded using a hex wrench, and the fitting part (plug) can be connected simply by inserting it later. In addition, the protrusion does not remain in the mold by removing the joint part by pushing the open sleeve for desorption.
● Built-in stop valve prevents the outflow of hot water when the plug is detached and detached.

Specifications
● Fluid used: air, water (clear water) (with conditions), heat medium oil (conditioned)
● Maximum working pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (air), 0 to 99 °C (Wed) , 0 to 120 ° C. (heat medium oil) (no freezing)
※ When the fluid used is water or heat medium oil, be sure to observe the following conditions.
1. When using water and heat media oil, keep the surge pressure below the maximum working pressure.
2. Be sure to use an insert ring when using water or heat medium oil.

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
●Sealing rubber: HNBR

Mass

129.5g
