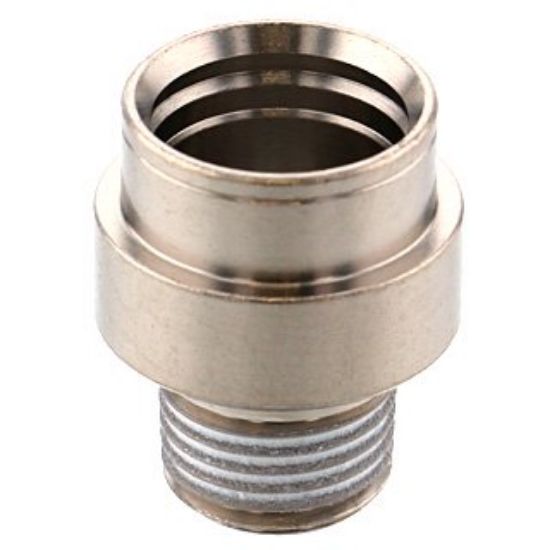

Pisco AK08-01S Die Temperature Control

Pisco AK08-01S Die Temperature Control

Size
Screw size (R): R1/8mm
Compatible plug part type: AK□08-□ P

Features
● One-touch fitting for mold cooling. When the plug part is removed, protrusions do not remain in the mold.
- Brass is used for metal parts, HNBR is used as a sealing material.
- Joint part and screw part are separated. : According to the screw size, the mold can be processed in advance, the screw part (socket) is embedded using a hex wrench, and the fitting part (plug) can be connected simply by inserting it later. In addition, the protrusion does not remain in the mold by removing the joint part by pushing the open sleeve for desorption.

Specifications
● Fluid used: air, water (clear water) (with conditions), heat medium oil (conditioned)
● Maximum working pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (air), 0 to 99 °C (Water), 0 to 120°C (heat medium oil) (no freezing)
※ When the fluid used is water or heat medium oil, be sure to observe the following conditions.
1. When using water and heat media oil, keep the surge pressure below the maximum working pressure.
2. Be sure to use an insert ring when using water or heat medium oil.

Material
● Metal body: brass + electroless nickel plating

Mass

10g
