Metal Work Pneumatic W3606000002 - INLINE VAP 1/4"

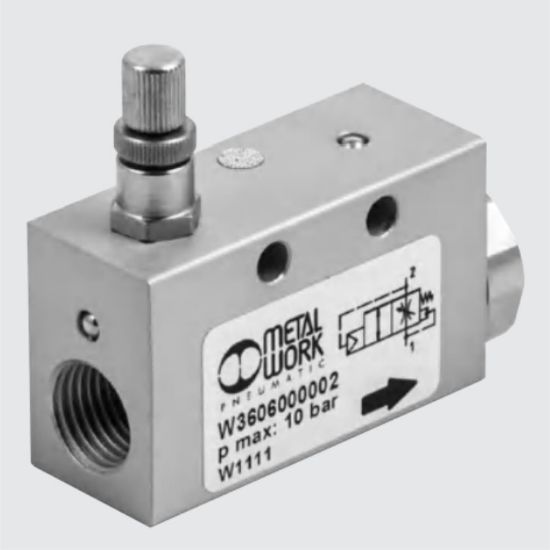

VAP 1/4 The inline soft starter is a valve that regulates the flow rate of outlet until the inlet pressure reaches a certain value, at which the valve opens and allows full air passage. The Metal Work Pneumatic W3606000002 valve can be integrated to control a group of valves, a single valve or between valve and actuator. The air entering the mouth 1 passes through a throttle, adjustable by means of a knob, which controls the flow. The Metal Work Pneumatic W3606000002 valve opens fully when the inlet pressure reaches a value close to 60% of the pressure of desired job. If the power supply is interrupted, the valve allows the discharge of the air from the mouth 1 to mouth 2.
