50142875 GSU 14D-66.3-S12
50142875 GSU 14D-66.3-S12
50142875 GSU 14D-66.3-S12

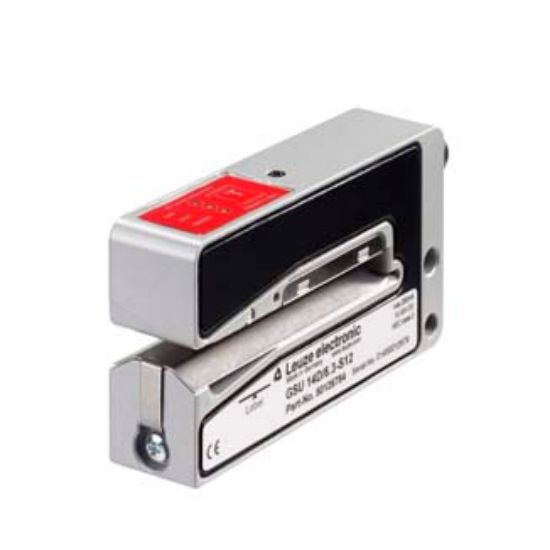

Picture of Leuze GSU 14D/66.3-S12 Ultrasonic forked sensor

Leuze GSU 14D/66.3-S12 Ultrasonic forked sensor

Leuze GSU 14D/66.3-S12 Ultrasonic forked sensor Part 50142875
Manufacturer: Leuze
SKU: LZ-GSU 14D/66.3-S12
Manufacturer part number: GSU 14D/66.3-S12
$991.00 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Series14
Principle of physicsUltrasonics
ApplicationDetection of non-transparent labels
Detection of transparent labels
Label width, min.10 mm
Label gap, min.2 mm
MediumTransparent and not transparent
Special versionTeach input
Protective circuitPolarity reversal protection
Short circuit protected
Supply voltage UB12 ... 30 V, DC
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 80 mA
Number of teach inputs1 Piece(s)
TypeTeach input
Voltage typeDC
Switching voltagehigh: ≥8V
low: ≤ 2 V
Input resistance15,000 Ω
Active switching stateHigh
Number of digital switching outputs2 Piece(s)
TypeDigital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V)
low: ≤ 2 V
Load capacity0.5 µF
Switching elementTransistor, Push-pull
Switching principleSwitching signal in label gap
Switching elementTransistor, Push-pull
Switching principleSwitching signal on label
Response time0.2 ms
Readiness delay300 ms
Max. conveyor speed during teach-in50 m/min
Number of connections1 Piece(s)
FunctionSignal OUT
Teach input
Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialMetal
No. of pins5 -pin
EncodingA-coded
Plug outletHorizontal (parallel to belt movement)
DesignFork
Mouth width4 mm
Mouth depth68.5 mm
Dimension (W x H x L)20.7 mm x 48.2 mm x 101 mm
Housing materialMetal
Metal housingDiecast zinc
Net weight270 g
Housing colorBlack
Red
Type of fasteningMounting thread
Through-hole mounting
Type of displayLED
Number of LEDs3 Piece(s)
Operational controlsTeach button
Ambient temperature, operation0 ... 60 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP 65
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
US patentsUS 6,314,054 B
