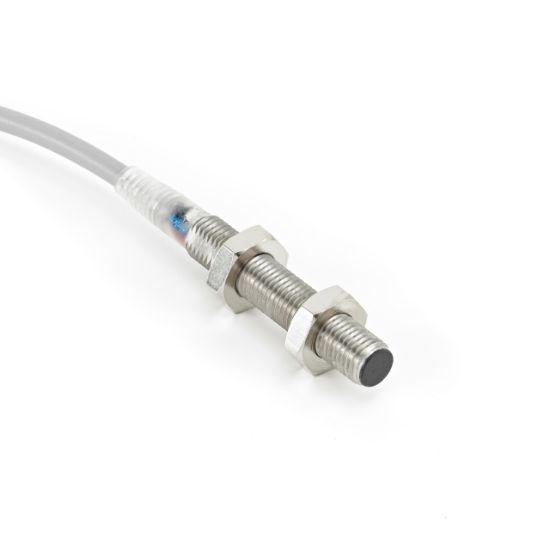

HTM OCN1-0802P-A3L2 Extended Range Proximity Sensor

Type: Extended Range General Purpose Sensors

Shape: Cylindrical

Diameter: M8

Sensing Range: 2 mm Range

Mounting Style: Shielded

Output Type: PNP

Output Function: Normally Open

Connection: Pre-Leaded 3 Wire

Connector: 2 m Cable

Body Length: 62

Housing Material: Stainless Steel SUS303

Sensing Face Material: PBT Plastic

IP Rating: IP67

Operating Temperature: -25 C - +70 C

Operating Voltage: 10-30 V DC

Current Consumption: <10 mA

Leakage Current: <0.01 mA

Max Current: 200 mA

Surge Current: -

Short Circuit Protected: Yes

Reverse Polarity Protected: Yes

Switching Frequency: 2 KHz

Response Time: 0.1 ms/0.1 ms

EMC Rating: RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating: IEC 60497-5-2 Part 7.4.1&7.4.2

Weld Field Immune: No

Weld Spatter Resistant: No

Description: M8, 2 mm Range, PNP, Normally Open
