Description

A Goodyear sleeve air spring will employ a flexible member without an internally molded bead. The flexmember is attached to the end of the retainers by pinching the material between the ends and the exterior crimp rings which are then adjusted to the proper diameter. There are many applications for Goodyear sleeve style airbag springs. The most common uses are ride springs for passenger cars and truck, isolators and springs for truck cab suspensions and seat springs, as well as many commonly seen industrial applications. 1S4-123 sleeve style air springs are built with durability and longevity in mind.

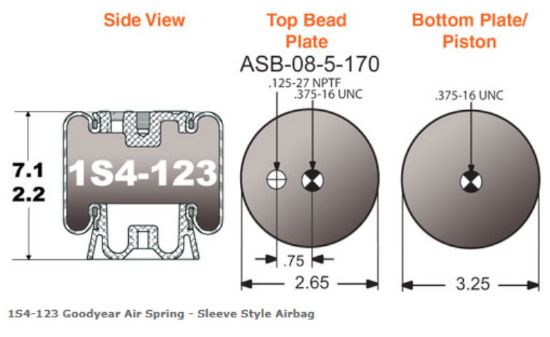

Specs

• Top Plate Hole/Stud: 2
• Bottom Plate Hole/Stud: 1
• Top Plate Diameter: 2.65
• Bottom Plate Diameter: 3.25
• Collapsed Height: 2.2
• Flexmember: 579-08-7-157
• Piston: —
• Piston Type: —
• Goodyear Trimmed: 1S4123

Crossovers

• Firestone: 7046
• Link Manufacturing: 1102-0022
• Automann: ABSZ70-7046
• Firestone: E-FS7046
• PAI Industries: FAS-5077
