Goodyear 1B8-564 Industrial Air Spring Single Convoluted Bellows

1B8-564 Industrial Air Spring / Bellows NO. 579-913-532 Small Plale 1B8-1 579-91-3-532

Specifications and Technical Data

Goodyear 1B8-564

Goodyear 579-913-532
SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-564

Goodyear #: 1B8-564
Bellow Type: Single
Automann Bellow #:
Firestone Bellow #:
Goodyear Bellow #: 579-91-3-532
Contitech Bellow #:
Triangle Bellow #:
Bottom Plate/Pison Type:

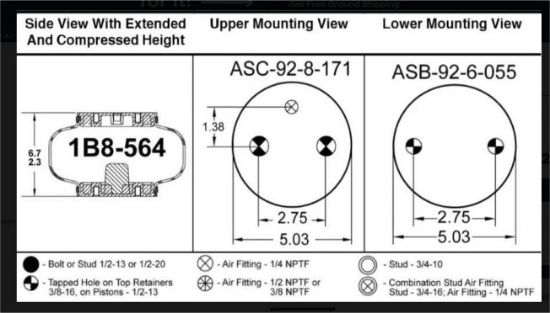

Top Plate Hole/Stud Qty: 2
Top Plate Dia: 5.03
Top Plate C to C Diameter: 2.75
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 5.03
Bottom Plate C to C Diameter: 2.75
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: Yes
Bracket:
Min Height: 2.3
Max Height: 6.7
