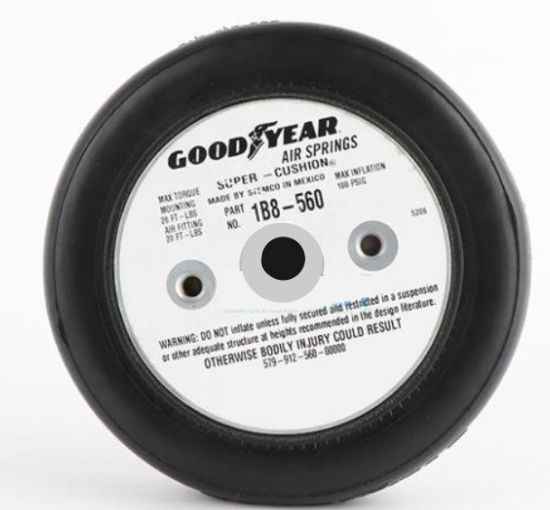

Goodyear 1B8-560 Industrial Air Spring Single Convoluted Bellows

1B8-560 Industrial Air Spring / Bellows NO. 579 913 560 Small Plale 1B8-1 579-91-3-532

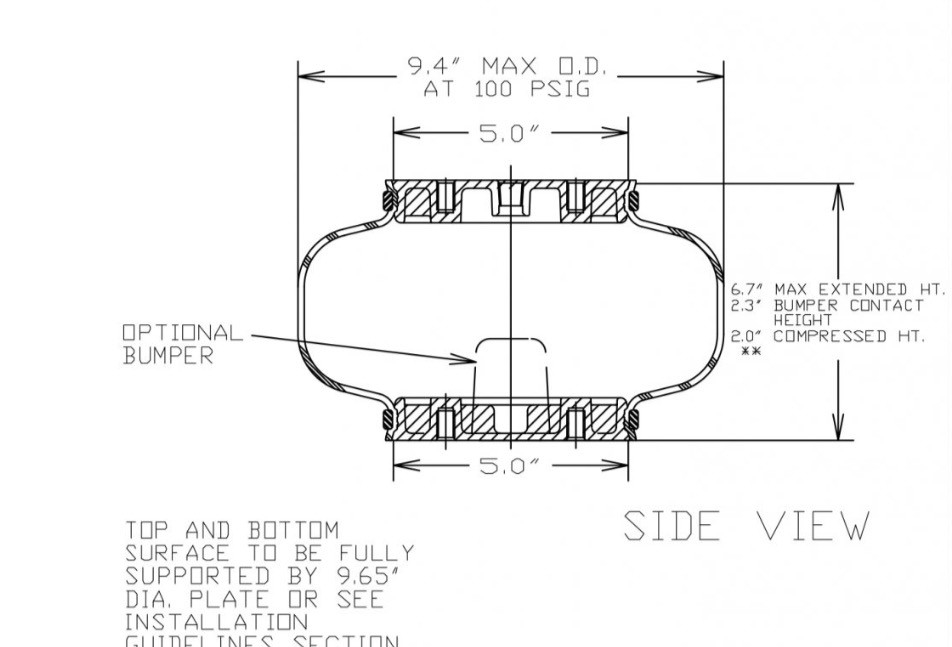

Goodyear 1B8-560 Specifications and Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm

❹Rubber Bellows
Rubber Bellows MAX Diameter: 240 mm
Rubber Bellows Natural Diameter : 225 mm
The Working Stroke : MIN 60 mm to MAX 180 mm
Maximum Height : 180 mm
Minimum Height :50 mm
Stroke Height : 120mm

❺ Bumper block / Buffer block
Without Bumper Block

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop

Goodyear 1B8-560

Goodyear 579-91-3-532
SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560

Goodyear 1B8-157,

Goodyear 1B8-159,

Goodyear 1B8-560,

Goodyear 1B8-563

Goodyear 1B8-562

Goodyear 1B8-564

refer to Firestone Wo1-358-7598; 116B1116B-1
refer to Firestone W01-358-7598, W013587598, W01-358-7598,

refer to Contitech FS 120-12 CI 1/4 NPT

Airmount / Airstroke
(2) 2.75 center distance
3 / 8-16UNC, 1/4 "NPT AIR INLET
Air Springs from ITT Enidine Inc.
Single Convolute Bellow Air Spring YI-1B8-560

Maximum stroke: 3.20 inches
System natural frequency: 2.33 Hz
Height range: 4 to 6-1 / 2 inches
100 psi diameter: 9.4 inches
Spring style: single-turn curved surface type
End plate diameter: 5 inches
Force at 100 psi maximum stroke: 1600 lbs
Center distance between tapped holes: 2-3 / 4 inches
Load range at 100 psi: 1900 to 3300 pounds
Air port thread standard: UNC
Bumper Type: No
Air port thread diameter: 1/4 inch
Air port thread type: 1/4 UNC
