1B7540 goodyear airspring

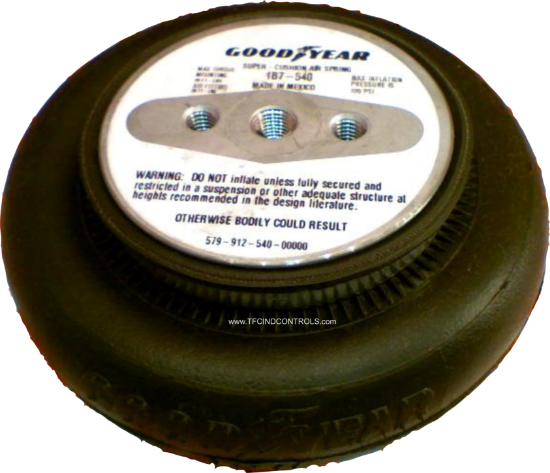

Goodyear 1B7-540 SUPER CUSHION AIR SPRING, SINGLE CONVOLUTED BELLOW

579-912-540-00000 1b7 579-913-520
Be the first to review this product
Manufacturer: Goodyear
SKU: GY-1B7-540
Manufacturer part number: 1B7-540
$142.00 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Goodyear 1B7540 SUPER CUSHION AIR SPRING, SINGLE BELLOW

SPECIFICATIONS

Spring StyleSingle Convoluted
Stroke3.2000 in
Force at Maximum Stroke at 100 psi850 lbs
Load Range at 100 psi1600 to 2200 lbs
Height Range3.5000 to 4.5000 in - 3-1/2 to 4-1/2 in
Bumper TypeNone
Air Port Thread Type1/4 UNC
System Natural Frequency2.67 Hz
Diameter at 100 psi7.7 in
End Plate Diameter4.15 in
Tap Spacing1-3/4 in
Air Port Thread StandardUNC
