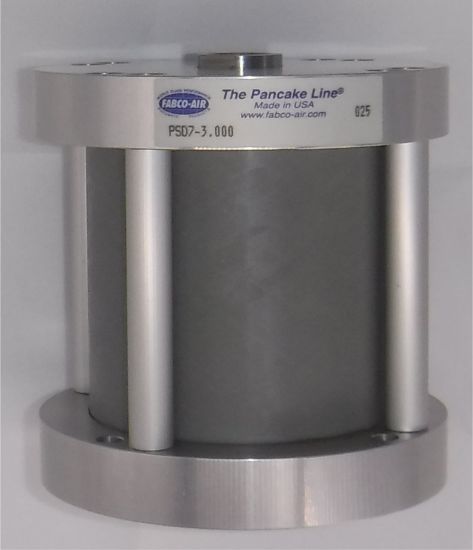

FABCO PSD7-3.000 / PSD73000 PNEUMATIC CYLINDER, PANCAKE II SERIES, SINGLE ROD, DOUBLE ACTING, 3 INCH BORE,

Fabco PSD7-3.000 FABCO PSD7-3.000 / PSD73000 PNEUMATIC CYLINDER, PANCAKE II SERIES, SINGLE ROD, DOUBLE ACTING, 3 INCH BORE, STANDARD COUNTERBORED MOUNTING, 3 INCH STROKE Double-acting pneumatic tie-rod cylinder actuator with single rod - Fabco-Air (Pancake II standard series) - 3" (B3") bore - 3" (S3") stroke - 5/8-18 UNF-2B female threaded rod-end - 2 x 1/4" NPT threaded pneumatic ports - rated for -25...+221°F / -32...+105°C ambient - round cylindrical shape - self-lubricating composite body / Chrome-plated stainless steel piston rod / Aluminium piston - counterbored hole mounting - rated for 15psi...200psi

Manufacturer: Fabco-Air

SKU: FB-PSD7-3.000

Manufacturer part number: PSD7-3.000

$217.40 Call to Order

Specifications

Primary brand Fabco-Air
Main function Pneumatic cylinder
Product series / family name
Pancake II series
Sub-range name standard series
Bore size 3" (B3")
Stroke length 3" (S3")
Functions Double-acting pneumatic tie-rod cylinder actuator
Design single rod
Pressure 15psi min.
200psi max.
Shape round cylindrical
Connection type 5/8-18 UNF-2B female threaded rod-end
2 x 1/4" NPT threaded pneumatic ports
Mounting mode counterbored hole mounting
Material
- self-lubricating composite body
- Chrome-plated
- stainless steel piston rod
- Aluminium piston
- stainless steel tie bolts
- PTFE composite rod bushing
- pre-lubricated with Magnalube-G grease
- clear anodized Aluminium head
Ambient air temperature for operation -25...+221°F / -32...+105 °C
Application type
Medical
Packaging
warehouse and logistics
electronics and semiconductors
printing and converting
medical packaging machinery
conveyors
dispensing
mold ejection stamping
