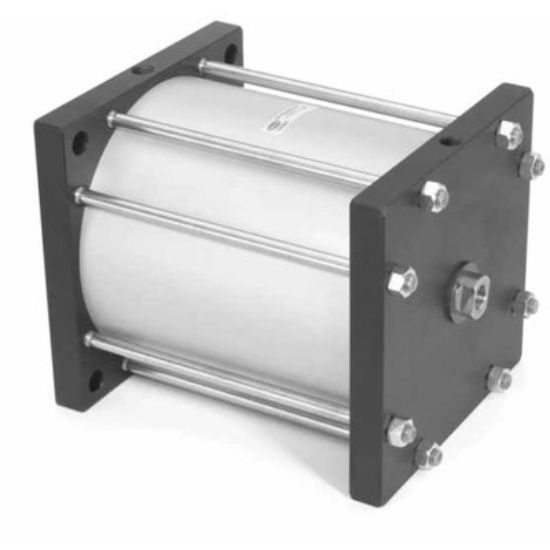

Fabco HP6X2-3/8FF-E Cylinder 6" bore 2 3/8" stroke

Specifications

Primary brand: Fabco-Air

Main function: Pneumatic cylinder

Product series / family name: Hi-power

Sub-range name: HP series

Bore size: 6" (B6")

Stroke length: 2" (S2")

Functions: Double-acting pneumatic tie-rod cylinder actuator

Design: single rod

Pressure: 15psi min., 250psi max.

Shape: rectangular

Connection type: 3/4-16 UNF-2B female threaded rod-end, 2 x 1/4" NPT threaded pneumatic ports

Mounting mode: front face mounting with Fabco pattern

Material: Aluminium body (hard anodized ID / clear anodized OD), stainless steel piston rod, Aluminium piston, Buna-N U-cup seals, steel piston bolt, stainless steel tie rods, plated steel nuts, PTFE piston bearing, Duralon rod bearing, pre-lubricated with Magnalube-G grease, black anodized Aluminium rod and cap end heads, black anodized Aluminium cap end plug anodized Aluminium piston rod bushing.

Ambient air temperature for operation: -25...+250°F / -32...+121 °C

Application type: packaging, warehouse and logistics, automotive, printing and converting medical electronics and semiconductors, package sealing, water manufacturing, laminate slicing machines, punching pressing and shearing, stamping.
