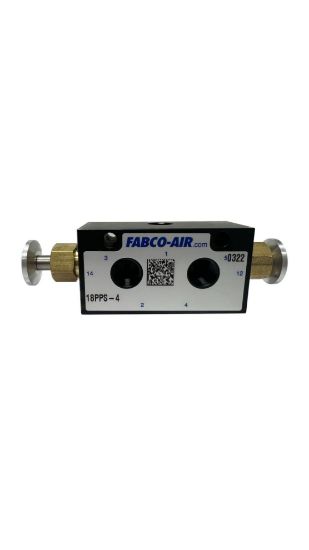

Fabco 18PPS-4 1/8 NPT, 4-Way, Double Small Palm Button, Detented, 18 Series Valve

Fabco 18PPS-4 4-way (5/2) double small palm button actuated pneumatic directional control valve - Cv 0.27 - Fabco-Air (18 series) - 5 x 1/8" NPT threaded (female) pneumatic connections (ports 1; 2; 3; 4; 5) - 5-ports 2-positions - nitrile rubber (NBR) seals - equivalent to 18PPS4

Manufacturer: Fabco-Air

SKU: FB-18PPS-4

Manufacturer part number: 18PPS-4

$68.12 Call to Order

Specifications

Primary brand: Fabco-Air

Main function: Valve (Manually actuated)

Product series / family name: 18 series

Functions: Double small palm button actuated pneumatic directional control valve

Valve function: 4-way (5/2) 5-ports 2-positions Design for pneumatic air / inert gases / vacuum applications

Flow: Cv 0.27

Pressure: 0...+150psi operating pressure

Connection type: 5 x 1/8" NPT threaded (female) pneumatic connections (ports 1; 2; 3; 4; 5)

Material: black anodized Aluminium bar stock body un-anodized Aluminium button with stainless steel rod in brass bushing
lightweight polyoxymethylene (POM) spool nitrile rubber (NBR) seals

Ambient air temperature for operation: 0...+40 °C

Order code / Manufacturer SKU: 18PPS-4

18PPS4

Application type: Suitable for vacuum directional flow applications; but NOT for holding vacuum
