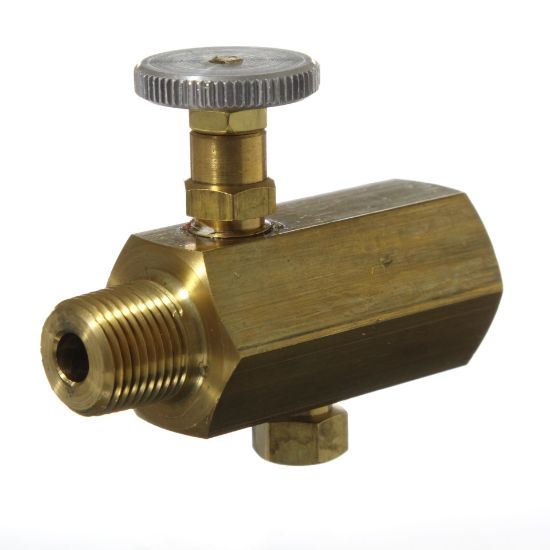

Deltrol FMF25BK Flow Control Valve Male to Female

Be the first to review this product

Manufacturer: Deltrol Fluid Products

SKU: FMF25BK

Manufacturer part number: FMF25BK

$92.15 Call to Order

DESCRIPTION

A Variable Flow restrictor with Positive Shut-Off and Free reverse Flow

A wide range of flow adjustment in the controlled flow direction is possible because of the fine thread and tapered needle. A spring biased ball check allows full flow in the opposite direction. Unwanted changes in adjustment are prevented by a lock nut.

FEATURES AND BENEFITS

A wide range of flow adjustability
Lock nut to maintain flow setting
Positive shut-off
Eliminates need for extra pipe nipple

SPECIFICATIONS

Pressure Max psi: 2000

Pressure Max bar: 138

Max Flow gpm: 5.00

Max Flow lpm: 18.90

Max Cracking Pressure psi: 2.50

Max Cracking Pressure bar: 0.17

Cv Factor: 0.83

Port Size: 3/8"

Port Type: NPTF

Material : Brass

Knob: Knurled

Recommended Operating Tempature Range (°F): -15 to +400

Recommended Operating Tempature Range (°C): -26 to +204

Maximum Operating Pressure (non-Shock Service): Brass: 2,000 psi (138 bar)
Cracking Pressure: 1 to 2.5 psi (.07 to .17 bar)
Operating Temperature range: -15° to +400° F (-26° to +204° C)
Threads: NPTF
Materials:
- Body, Housing, Plug: Brass
- Collar: Stainless Steel 303
- Needle: Brass
- O-Ring: Viton
- Back-Up Washer: Teflon
- Ball: Stainless Steel 440
- Spring: Stainless Steel 302
- Lock Nut: Brass
- Knob: Aluminum
