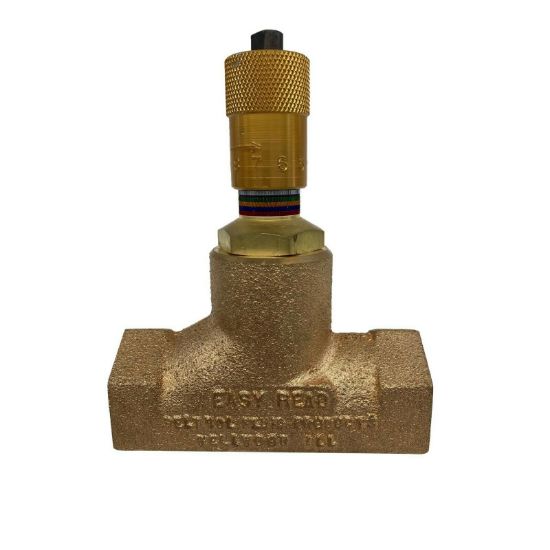

Deltrol EF30B Flow Control Valve 1/2" NPT Brass 1/2" EF-30-B 10120-47

Manufacturer: Deltrol Fluid Products
SKU: EF30B
Manufacturer part number: EF30B

Deltrol EF30B Flow Control Valve 1/2" NPT Brass EF-30-B  10120-47 NEW

Deltrol’s unique line of Easy Read Flow Control Valves incorporate a metal setting knob and stem for added durability and positive operation. Color coding on stem allows you to precisely set flow requirements by simply turning the knob to the appropriate marking.

Flow control valves provide flow control in one direction, free flow in opposite direction. Flow adjustment can be made under pressure. Setting knob can be locked in any desired position with convenient set screw.

These tough valves are ideal for general industrial and mobile applications including plastic injection molding machines, packaging equipment, machine tools, car washes, hospital beds, and many types of automotive equipment.

FEATURES AND BENEFITS
  • Metal setting knob and stem
  • Color coding and numerical readout allow positive setting for precise flow control and repeatability
  • Can be accurately adjusted within a small fraction of a turn (one full turn per color)
  • Set Screw in knob to maintain flow setting
SPECIFICATIONS
Pressure Max psi 2000
Pressure Max bar 138
Max Flow gpm 12.00
Max Flow lpm 45.40
Max Cracking Pressure psi 2.50
Max Cracking Pressure bar 0.17
Cv Factor 0.93
Port Size 1/2"
Port Type NPTF
Material Brass
Knob Easy Read
Recommended Operating Tempature Range (°F)-30 to +200
Recommended Operating Tempature Range (°C) -34 to +93
  • Maximum Operating Pressure (non-Shock Service)
    • Brass: 2,000 psi (138 bar)
    • Carbon Steel: 5,000 psi (345 bar)
    • Stainless Steel: 5,000 psi (345 bar)
    • Ductile Iron: 5,000 psi (345 bar)
  • Cracking Pressure (except 1")
    • 1 to 2.5 psi (.07 to .17 bar)
  • Cracking Pressure (1")
    • 3 to 5 psi (.21 to .34 bar)
  • Operating Temperature range
    • 1/8"- 3/4" -30° to +200° F (-34° to +93° C)
    • 1" -15° to +400° F (-26° to +204° C)
  • Threads
    • NPTF, BSPT, BSPP, SAE
  • Materials (except 1")
    • Body: Brass, Steel, Stainless Steel 303
    • Needle:
      • Brass (Brass Valves) Stainless Steel 416
    • (Steel and Stainless Steel Valves)
    • O-Ring: Viton
    • Back-Up Washer: Teflon
    • Ball: Stainless Steel 440
    • Spring: Stainless Steel 302
    • Ball Guide: Delrin®
    • Knob: Aluminum
    • Set Screw: Steel
    • Color Rings: Anodized Aluminum
  • Materials (1")
    • Body: Leaded Tin Bronze, Ductile Iron
    • Housing: Brass, Steel
    • Needle: Stainless Steel 440 (Brass and Steel Valves)
    • O-Rings: Viton
    • Back-Up Washer: Teflon
    • Poppet: Stainless Steel 303
    • Spring: Stainless Steel 302
    • Retainer Ring: Steel
    • Knob: Aluminum
    • Set Screw: Steel
    • Color Rings: Anodized Aluminum
