Airbag 1S3-013 579-060-013
Airbag 1S3-013 579-060-013
Airbag 1S3-013 579-060-013
Airbag 1S3-013 579-060-013

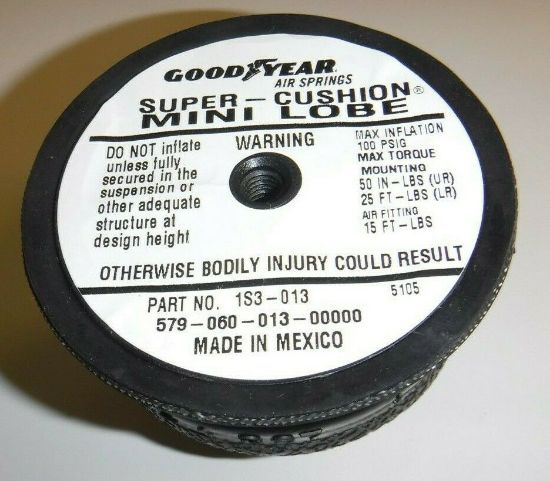

GOODYEAR AIR SPRINGS 1S3-013 / 1S3013 SUPER CUSHION MINI LOBE

579-060-013-00000 GOODYEAR AIR SPRINGS 1S3-013 / 1S3013 SUPER CUSHION MINI LOBE
Manufacturer: Goodyear
SKU: 1S3-013
Manufacturer part number: 1S3-013
$48.95 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

GOODYEAR AIR SPRINGS 1S3-013 / 1S3013 SUPER CUSHION MINI LOBE

Air spring air bag 579-06-1-367 579061367 579 06 1 367 JW3014 SZ37-6 1S3-013 SK37-6

Item No.: air spring air bag 1S3-013 SK37-6P02 1S3-013 579-060-013 579060013 579-06- 0-013 579 06 0 013 W02-358-3000 1C3014 Y1-1S3-013

1S3-013 Goodyear Sleeve Air Spring.  Super-Cushion ® Air Springs give your trucks, trailers and buses a new high in productivity and long life.  The Sleeve Air Springs provide constant comfort and deliver trouble-free service.

Sleeve air springs employ a flexible member without an internally molded bead. The flexible member is attached to the end retainers by pinching the material between the end retainers and exterior crimp rings which are then swaged to the proper diameter. Sleeve air springs are typically used in applications such as:
  • Ride spring for passenger cars and trucks
  • Isolators for truck cab suspensions
  • Seat springs (cab springs) for trucks and buses
  • Actuators and isolators for industrial applications

Goodyear #: 1S3-013
Bellow Type: Sleeve
Automann Bellow #: ABSZ70-3001
Firestone Bellow #: W02-358-3000, 02-358-3001
Goodyear Bellow #: 1S3013
Contitech Bellow #:
Triangle Bellow #:
Endyne Bellow: YI-1S3-013
Prevost Bellow #: 950208
Others: 11010001, W023583000, N12687, G5006637, FS3001, W023584001, 1S3011

Note: Cross references are not a guarantee that the part will fit any specific application. Do not rely on this information as it is provided as a service and compiled from sources other than official literature. Check all information available before relying on a cross reference to make a purchase.

SPECS
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 1
Top Plate Dia: 3.2
Top Plate C to C Diameter: N/A
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 2.4
Bottom Plate C to C Diameter:
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 1.5
Max Height: 3.6
